WIRE ROPE HOIST

KITO Wire Rope Hoist

A Wire Rope Hoist is designed for industrial lifting applications where smooth movement, controlled load handling, durability, and safety are important. It is commonly used with crane systems to lift, lower, and move heavy loads across manufacturing, warehousing, automotive, aerospace, heavy lift, defence, and general industrial environments.

Kito Wire Rope Hoists are built for crane-based material handling applications that require reliable performance, stable lifting, and easier maintenance planning. With features such as inverter control, overload protection, motor protection, durable braking, and rope guidance, they support efficient lifting operations in demanding industrial workplaces.

Single Girder Model

Double Girder Model

Wire Rope Hoist Models

Kito offers Wire Rope Hoists in two model configurations: RY Low Headroom Wire Rope Hoist and RYW Double Girder Wire Rope Hoist.

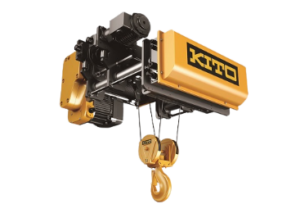

RY Low Headroom Wire Rope Hoist

The RY Low Headroom Wire Rope Hoist is suitable for single girder crane applications where available vertical space needs to be used efficiently. It is designed for crane girders with different flange widths and helps improve working height in industrial facilities.

The RY model is available in 3T, 5T, and 10T capacities, making it suitable for production areas, maintenance zones, warehouse operations, and general industrial lifting applications.

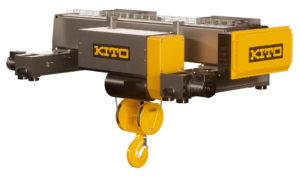

RYW Double Girder Wire Rope Hoist

The RYW Double Girder Wire Rope Hoist is suitable for double girder crane applications and heavier lifting requirements. It is designed for applications that require stable load movement, strong crane integration, and dependable lifting performance.

The RYW model is available in 10T capacity. Its trolley uses a side roller system to help reduce wear on wheels and crane rails.

Wire Rope Hoist Applications

Wire Rope Hoists are used in industrial environments where heavy loads need to be lifted and moved with safety and control.

They are suitable for:

Manufacturing material handling.
Warehouse lifting operations.
Automotive component handling.
Aerospace component movement.
Heavy lift applications.
Defence industry lifting requirements.
Industrial crane system integration.
Production and maintenance lifting.

Why Choose Kito Wire Rope Hoist?

Smooth lifting and travel: Inverter control supports lifting, lowering, and traversing with soft start and stop movement to help reduce load swing.
Overload protection: The electronic overload limiter detects overload instantly and shuts off the lifting circuit.
Motor protection: Electronic thermal motor protection detects overheating and stops operation to help protect the motor.
Durable braking system: The 3T and 5T models use a pull rotor type motor brake, while the 10T model uses a magnetic disc brake. The brake is rated for more than 1 million cycles.
Efficient light-load handling: The low-load high-speed function allows operation at 1.5 times the standard high speed when the load is less than 25% of the rated capacity.
Maintenance-friendly design: The CH meter displays starts and operating hours, helping maintenance teams plan inspections based on actual usage.
Reliable rope guidance: The full 360-degree rope guide keeps the wire rope securely in the drum groove and is designed for easier replacement.
Flexible model options: The RY model supports low headroom and single girder applications, while the RYW model supports double girder crane applications.
